NEW!
Cable locking feature
Durable and flexible EV charging

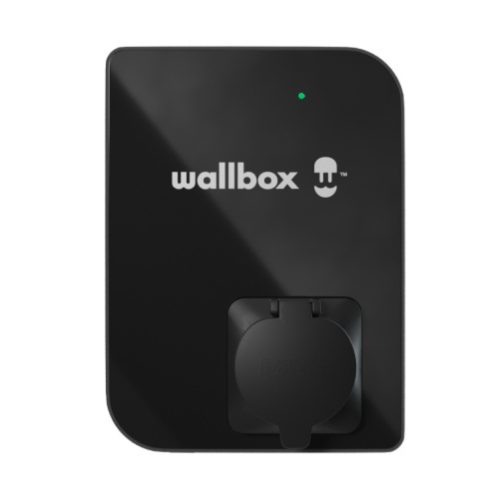

Wallbox Copper SB is designed to provide versatility, reliability and elegance for businesses looking to electrify their commercial parking.
The Copper SB charger guarantees EV drivers’ satisfaction thanks to its integrated socket, enabling EV charging for any electric vehicle on the market. Choose who accesses your charger with the RFID card reader and easily connect to the charger with the my Wallbox app.
Compact and resistantl
Its great-looking design achieves an IK10 rating certification, making it ideal for exterior environments.
Easy to install
Its clipping system and easy handling allow for effortless and fast deployment of multiple charging points.
Reliable
A high charger uptime is achieved with the remote operation tools in myWallbox platform and its multiple connectivity options.
Flexible
Its socket allows charging for any EV. The cable locking feature allows to alternate between socket and tethered charger to suit every need.
Flexibility that fits your needs
Copper SB allows for endless possibilities thanks to the right combination of hardware and software features:
Dynamic Load Management
Reduce installation costs and the need for power upgrades, thanks to its dynamic load management solution Dynamic Power Sharing.
Remote operation
The myWallbox Charge Point Operation tools allow you to set up and operate Copper SB remotely, maximizing its uptime.
Automated payment methods
Pay per charge: Enables single time payments for sporadic/non-recurrent visitors
Pay per month: Activates monthly payments for recurrent users
Compatible with myWallbox & OCPP platforms
Connect Copper SB to any charging software platform to monitor energy consumption and manage access permissions.
Flexibility that fits your needs
Copper SB allows for endless possibilities thanks to the right combination of hardware and software features:
Socket
Compatible with Type 1 and Type 2 EVs. The charging cable can be locked/unlocked via myWallbox, as well as via OCPP.
Durable & Reliable
Certified water and dust resistance with IP54 and IK10 protection ratings.
RFID card reader
Compatible with your employee’s company cards and major mobility provider cards.
Connectivity options
Copper SB is always connected, thanks to Wi-Fi, Ethernet , 4G connectivity or Bluetooth.Flexibility that fits your needs
Copper SB allows for endless possibilities thanks to the right combination of hardware and software features:
Dynamic Load Management
Reduce installation costs and the need for power upgrades, thanks to its dynamic load management solution Dynamic Power Sharing.
Remote operation
The myWallbox Charge Point Operation tools allow you to set up and operate Copper SB remotely, maximizing its uptime.
Automated payment methods
Pay per charge: Enables single time payments for sporadic/non-recurrent visitors
Pay per month: Activates monthly payments for recurrent users
Compatible with myWallbox & OCPP platforms
Connect Copper SB to any charging software platform to monitor energy consumption and manage access permissions.
What’s in it for your business?
Charger: AC
Colour: Black
Connector type: Type 2 Socket
Charging Mode: (IEC 61851-1) Mode 3
Dimensions: 260 x 192 x 113 mm
Weight: 2 kg
Operating Temperature: -25 ºC to 40 ºC
Standards CE mark: (LVD 2014/35/EU, EMCD 2014/30/EU),EC 61851-1, IEC 61851-21-2, IEC 62196-2
Maximum Charging Power: 7,4 kW (single-phase) / 22 kW (three-phase)
Rated Volta AC +10%: 400 V
Rated Current: 32 A (Both Single-phase and three-phase)
Cable Section: Up to 5x10mm2
Configurable Current: from 6 A to rated current
Protection Rating: IP54 / IK10
Surge Category: CAT III
Residual Current Detection: DC 6 mA
Connectivity: 3G/4G connectivity (optional) / Wi-Fi / Ethernet / . Bluetooth
User Identification: RFID Card / myWallbox app
User Interface: myWallbox app & portal
Charger Status Information: RGB LED / myWallbox app & portal
Compatible features: Eco-Smart / Power Sharing / Power Boost / Dynamic Power Sharing / MID Meter / Charging cable locking
Communication Protocol: myWallbox / OCPP 1.6j
